The G0KSC LFA Yagi is a major step forward in the development of the Yagi Antenna, it provides a low-noise front-end for your radio so you hear more weak signals. This compact 4 element 144Mhz LFA provides stunning performance across the whole 2M band (144-146MHz Specify if you require a different frequency range). Hard to beat with a direct 50 Ohm feedpoint and no matching losses !!

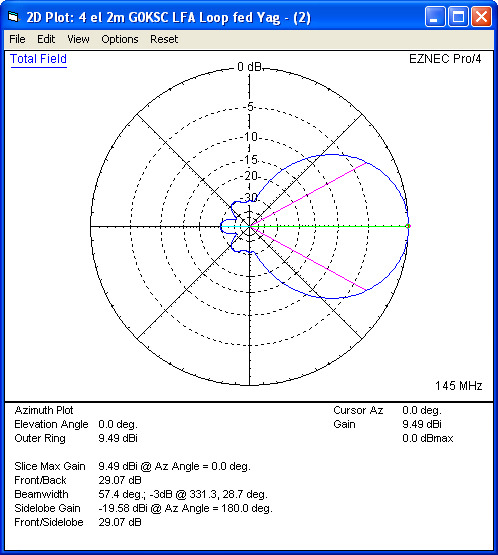

Performance
Gain: 9.49dBi @ 145MHz
F/B: 29.07dB @ 145MHz
Peak Gain: 9.52dBi
Gain 10m above ground: 15.92dBi
Peak F/B: 29.24dB
Power Rating: 5kw
SWR: Below 1.4.1 from 144MHz to 146MHz
Boom Length: 1.168m
REAR MOUNT AVAILABLE UPON REQUEST AND REQUIRED FOR VERTICAL MOUNTING
